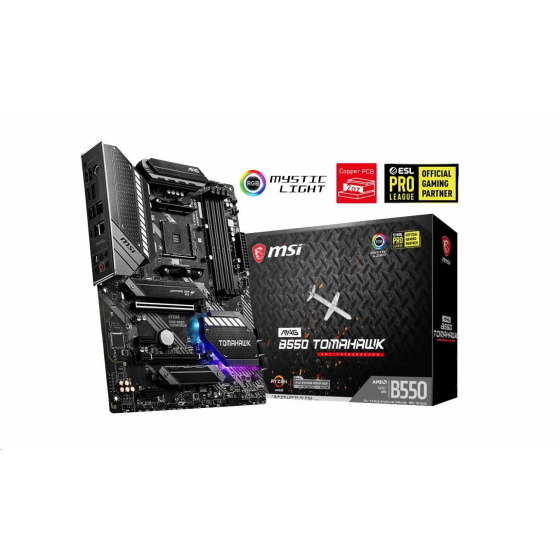

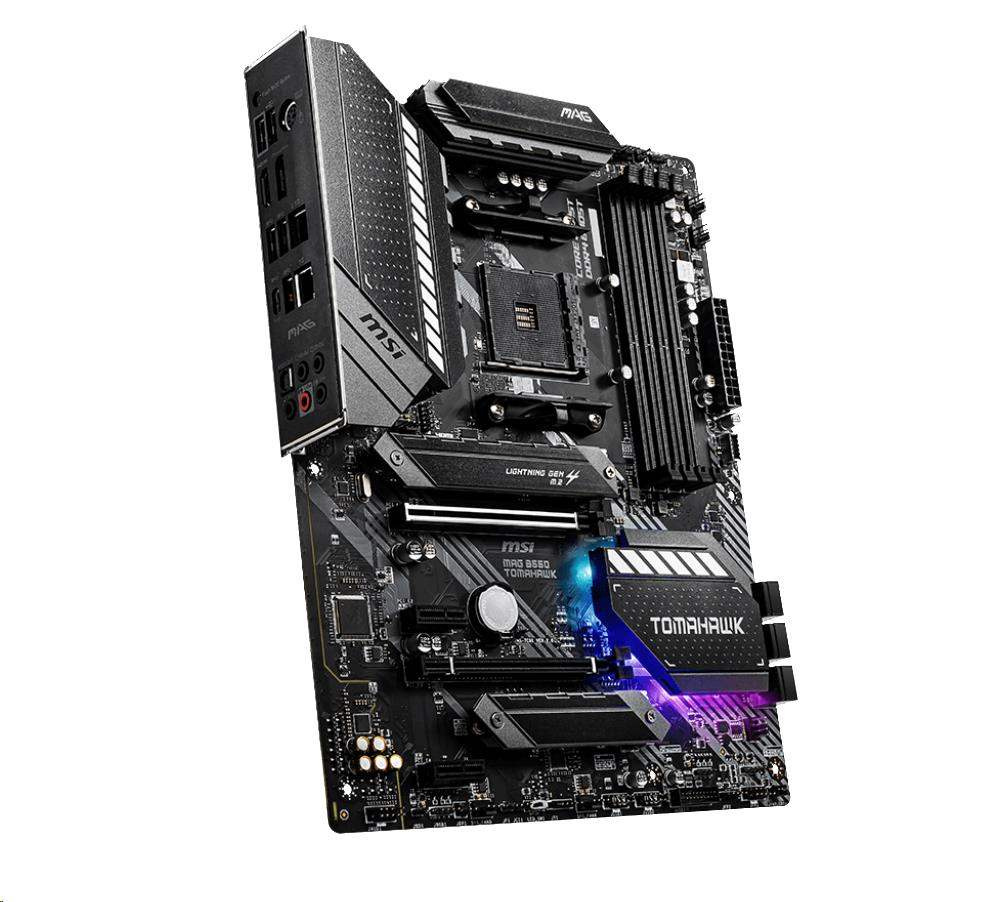

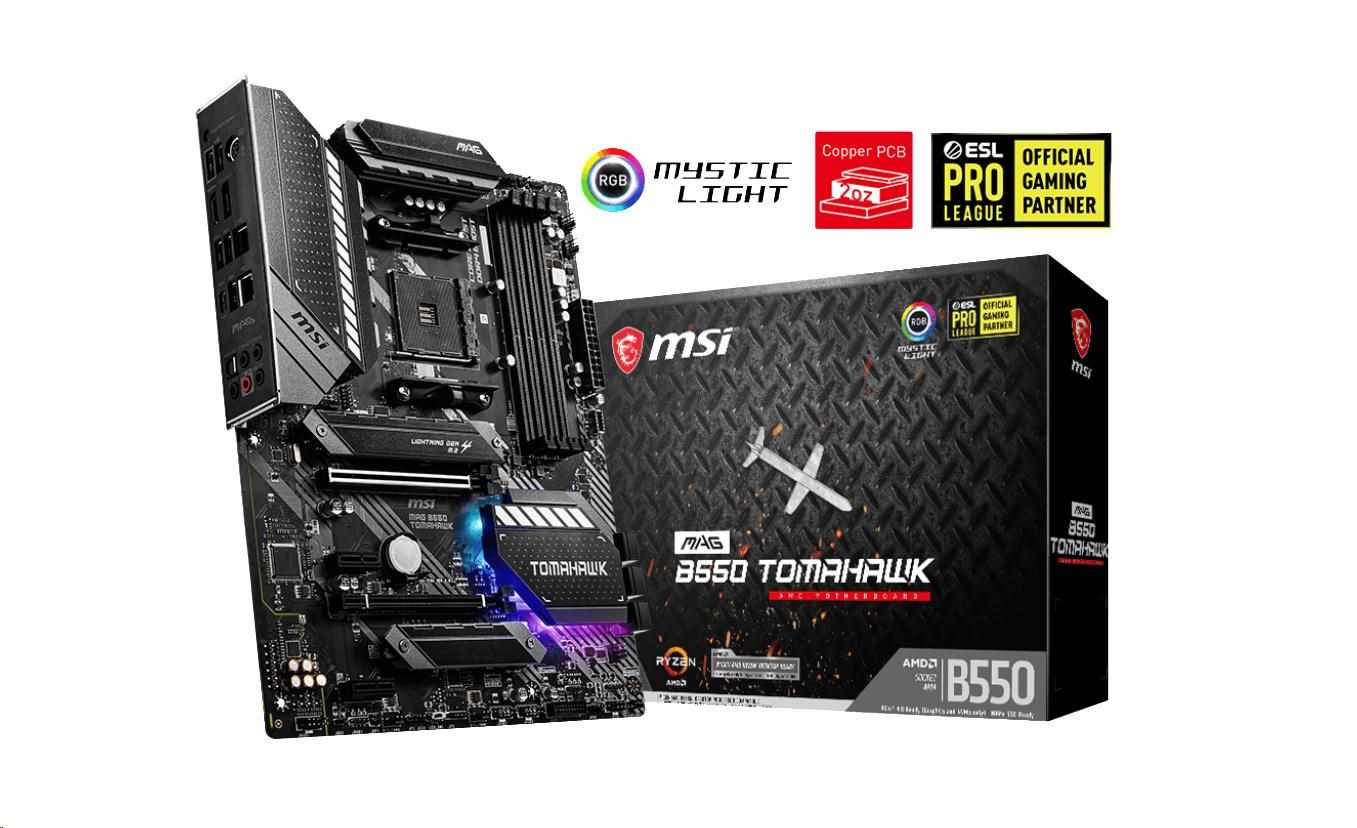

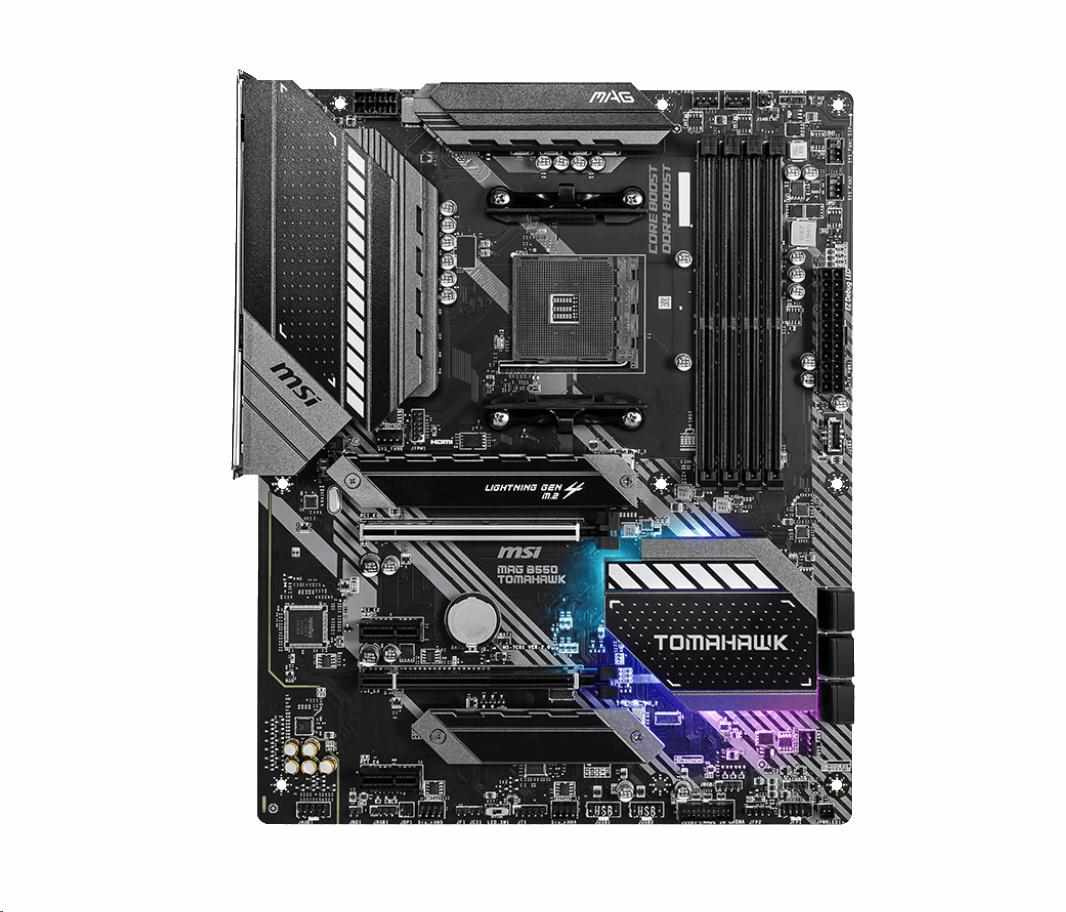

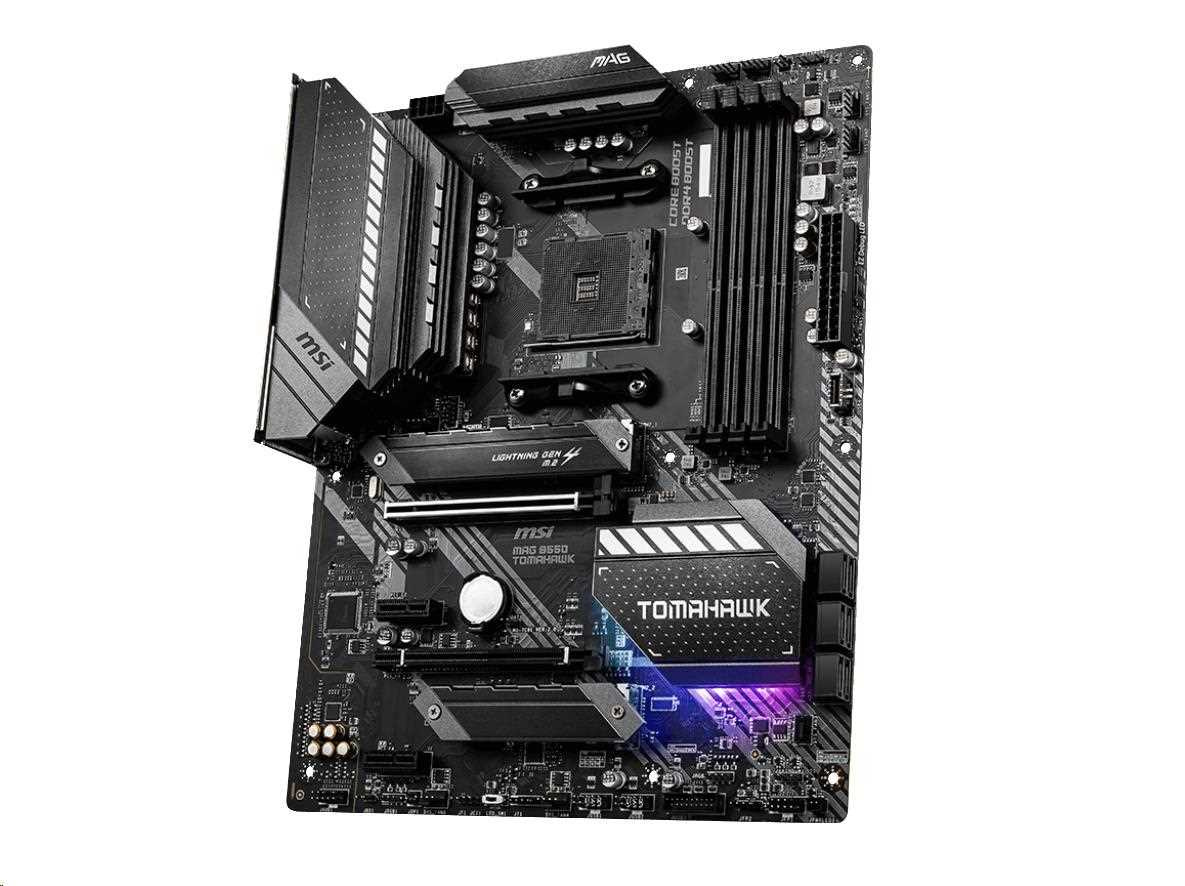

BAZAR - MSI MB Sc AM4 MAG B550 TOMAHAWK, AMD B550, 4xDDR4, VGA, ATX - repair (bez příslušenství)

Name: BAZAR - MSI MB Sc AM4 MAG B550 TOMAHAWK, AMD B550, 4xDDR4, VGA, ATX - repair (bez příslušenství)
Brand: MSI
SKU: 2648028
Price: 90.9 EUR
Availability: OutOfStock

Kód: 2648028

Na dotaz

Termín a spôsob doručenia

MSI

Formát:ATX; Chipset:AMD; Socket (pätica):Socket AM4; Typ pamäťového modulu:DDR4; Podpora RAID:1, 10; PCI express 16x:Více než 1; Integrovaná grafická karta; Integrovaná LAN karta:2; Ďalšie rozhranie:S/PDIF.prečítajte si viac

Obľúbený

Porovnať

Vyberte si zvýhodnené balenie

Množstevné zľavy

Váš dotaz

Sledovat

Parametre

Výrobca:

MSI

Kód:

2648028

EAN:

2648028

Záruka:

12 Měsíc(ů)

Stav:

Bazár

Typ pamäťového modulu:

DDR4

Socket (pätica):

Socket AM4

Integrovaná grafická karta:

Áno

Chipset:

AMD

PCI express 16x:

Více než 1

Integrovaná LAN karta:

Podpora RAID:

1, 10

Ďalšie rozhranie:

S/PDIF

Formát:

ATX

Popis BAZAR - MSI MB Sc AM4 MAG B550 TOMAHAWK, AMD B550, 4xDDR4, VGA, ATX - repair (bez příslušenství)

Naposledy navštívené produkty

BAZAR - MSI MB Sc AM4 MAG B550 TOMAHAWK, AMD B550, 4xDDR4, VGA, ATX - repair (bez příslušenství)

MSI PC AIO PRO AP222T 13M-006XEU, Core i3-13100,21.5" FHD Touch,8GB,256GB SSD,Intel UHD,bez OS,White

Zavolajte nám

Alebo nám napíšte na

CPU	Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset	AMD B550 Chipset
Memory	4 x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) ¹ 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed² 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
Multi-GPU	Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB Available for the processor with integrated graphics.
Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller 1x Realtek® RTL8111H 1Gbps LAN controller
Internal Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper

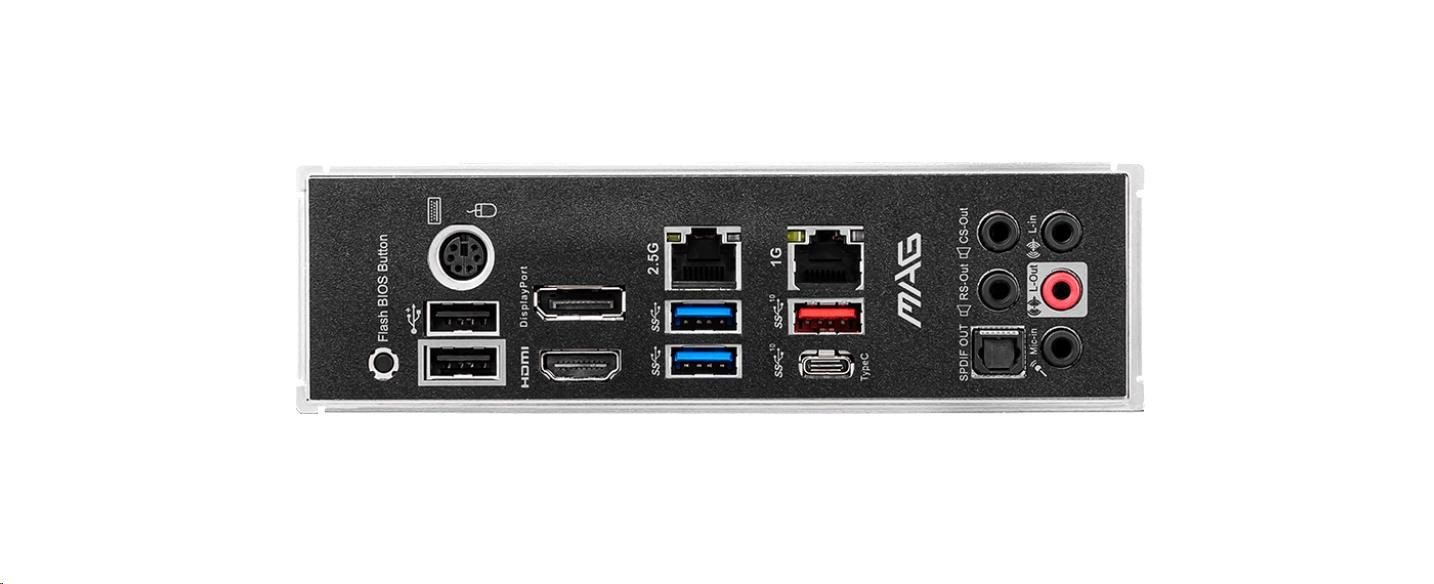

Back Panel Ports	PS/2 Combo Port DisplayPort 2.5G LAN Port 1G LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Port HDMI Port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A + Type-C) Optical S/PDIF OUT
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting	9 mounting holes
