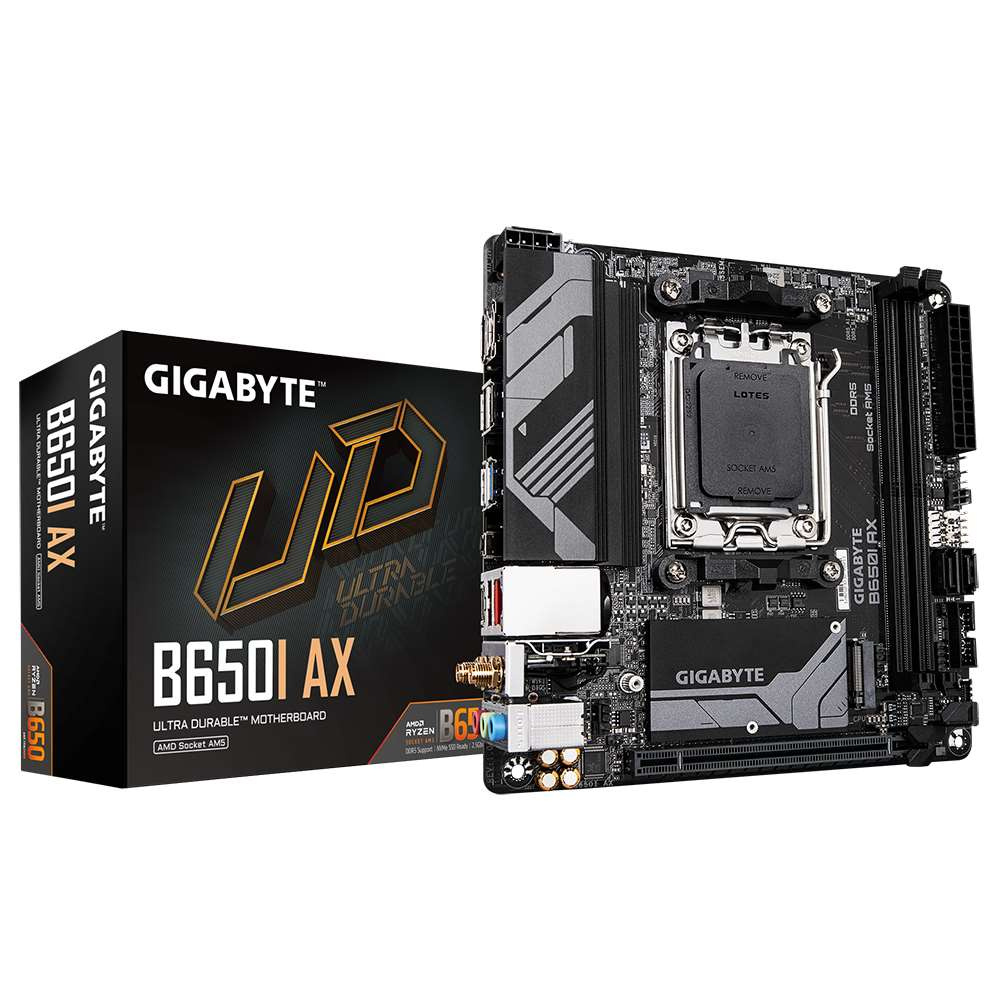

GIGABYTE MB Sc AM5 B650I AX, AMD B650, 2xDDR5, 1xDP, 1xHDMI, WI-FI, mini-ITX
Kód: 524867Na dotaz
Termín a spôsob doručenia
Formát:Mini-ITX; Chipset:AMD B650; Socket (pätica):Socket AM5 (LGA 1718); Typ pamäťového modulu:DDR5; Podpora RAID:0, 1; PCI express 16x:1.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
524867
EAN:
4719331859190
Záruka:
36 Měsíc(ů)
Stav:
Typ pamäťového modulu:
DDR5
Socket (pätica):
Socket AM5 (LGA 1718)
Chipset:
AMD B650
PCI express 16x:
1
Podpora RAID:
1
LPT port:
Ne
Formát:
Mini-ITX
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
AMD
Počet paměťových slotů:
2
DisplayPort:
1
TPM:
Ne
USB 2:
5
USB 3:
4
M.2 slot:
1
SATA 3:
2
HDMI:
1
Led Header:
Ano
USB C:
2
LAN:
2.5Gbit/s
Popis GIGABYTE MB Sc AM5 B650I AX, AMD B650, 2xDDR5, 1xDP, 1xHDMI, WI-FI, mini-ITX

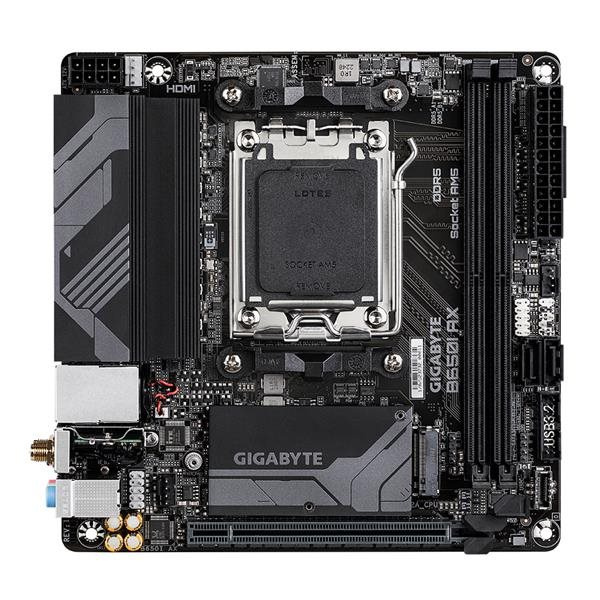

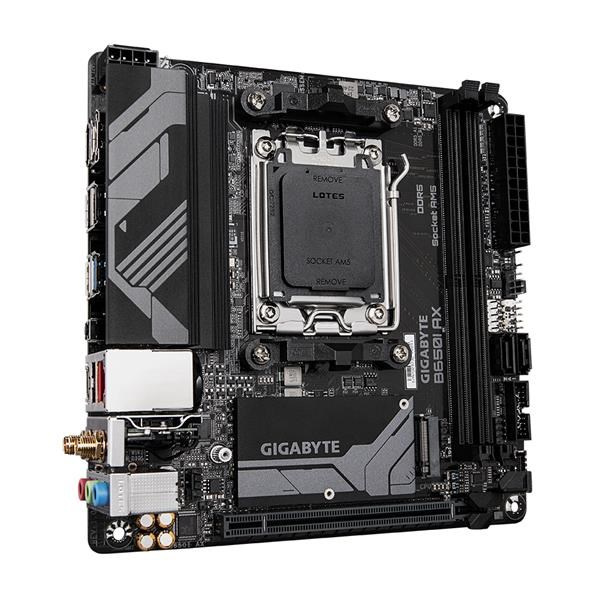

GIGABYTE B650I AX
- AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
- Unparalleled Performance:5+2+1 Phases Digital VRM Solution
- Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN
- Extended Connectivity:DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD B650
Memory
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless LAN
Realtek® Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
USB
CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB 2.0/1.1 port on the back panel
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
