MSI MB Sc LGA1700 MAG Z790 TOMAHAWK WIFI, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI
Kód: 2648351Skladom1107ks
Termín a spôsob doručenia
Formát:ATX; Chipset:Intel Z790; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:2.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
2648351
EAN:
4711377025492
Záruka:
36 Měsíc(ů)
Stav:
Typ pamäťového modulu:
DDR5
Socket (pätica):
Socket 1700
Chipset:
Intel Z790
PCI express 16x:
2
Podpora RAID:
1, 5, 10
LPT port:
Ne
Formát:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
USB 2:
4
USB 3:
10
M.2 slot:
4
SATA 3:
7
HDMI:
1
Led Header:
Ano
PCI Express x1:
1
USB C:
3
LAN:
2.5Gbit/s

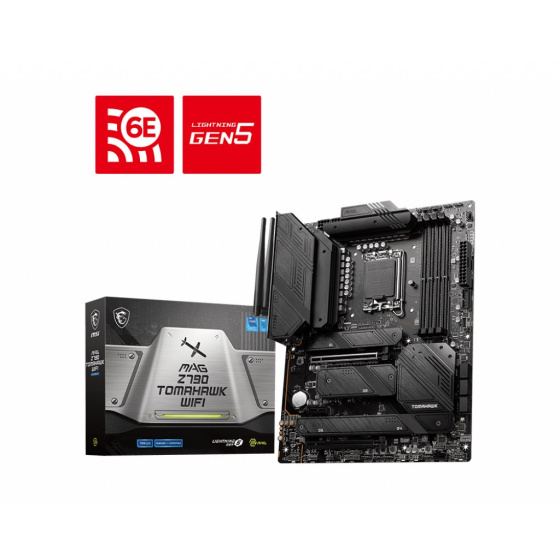

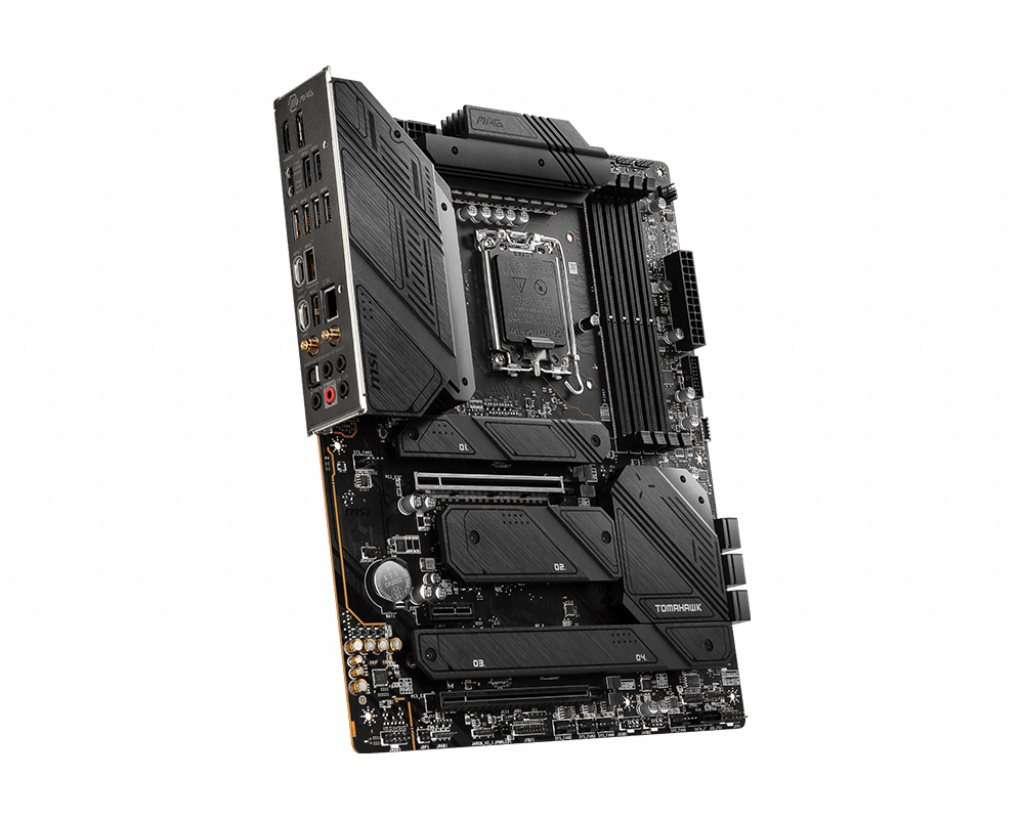

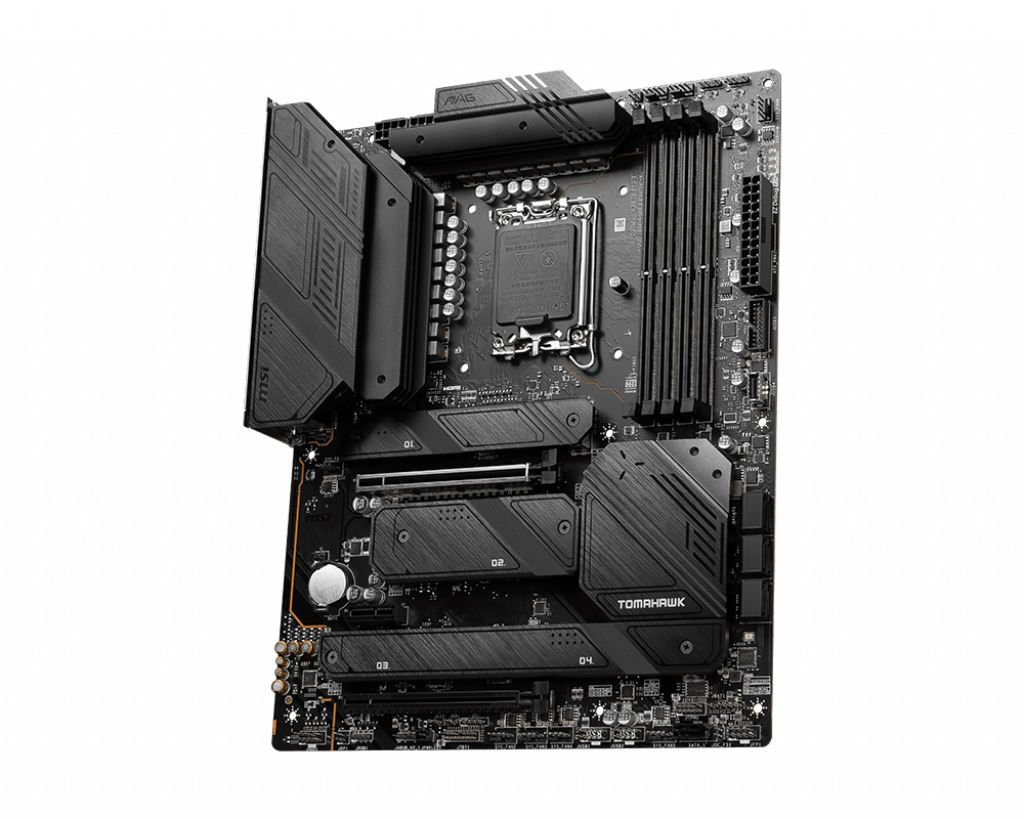

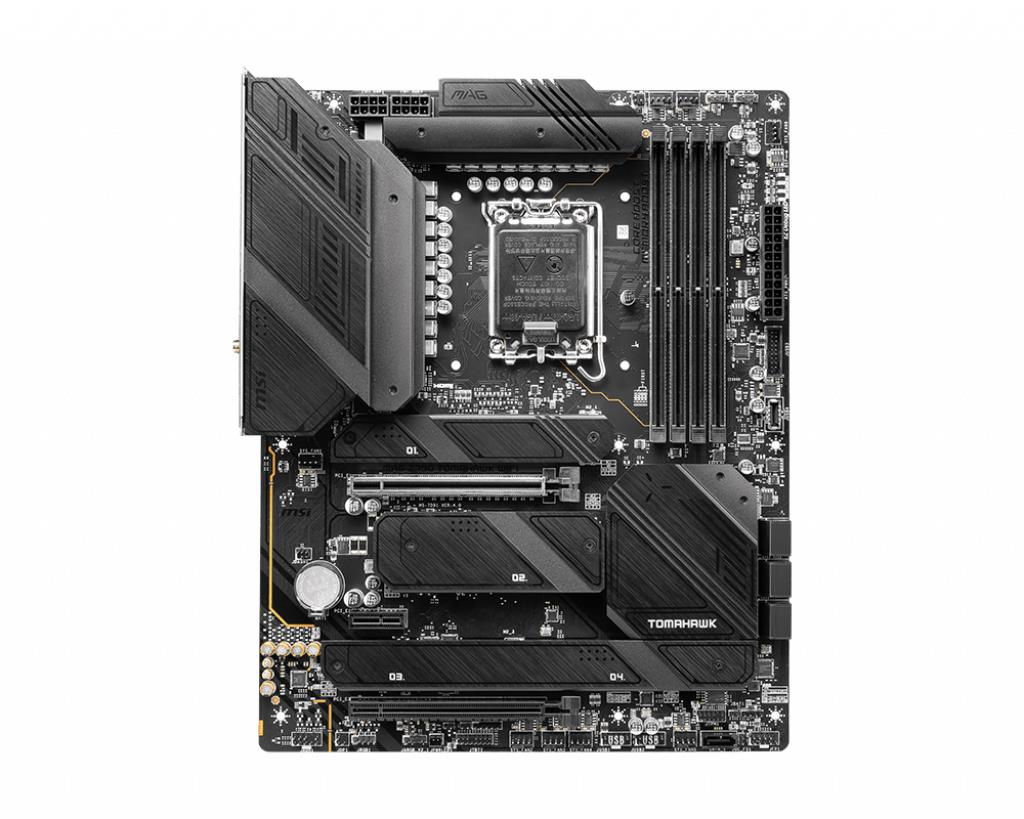

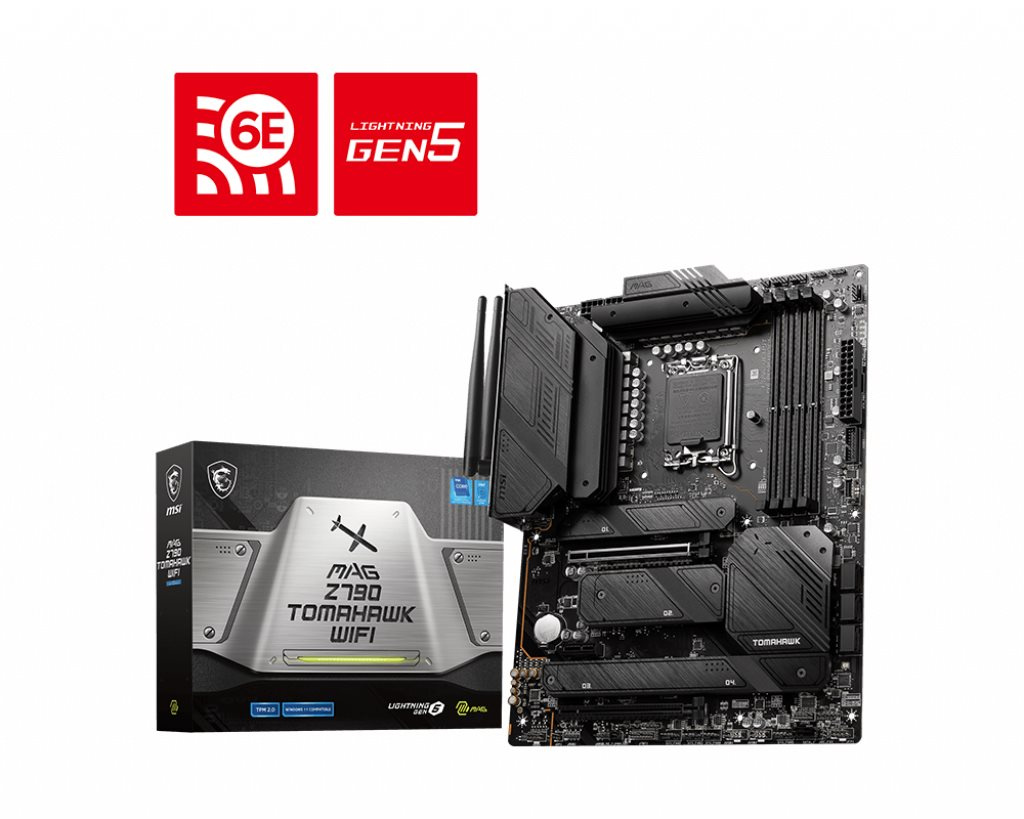

Popis MSI MB Sc LGA1700 MAG Z790 TOMAHAWK WIFI, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI
MAG Z790 TOMAHAWK WIFI
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
CHIPSET
INTEL Z790
CPU SUPPORT
Supports 14th/ 13th/ 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
MEMORY
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS
1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE
4x EZ Debug LED

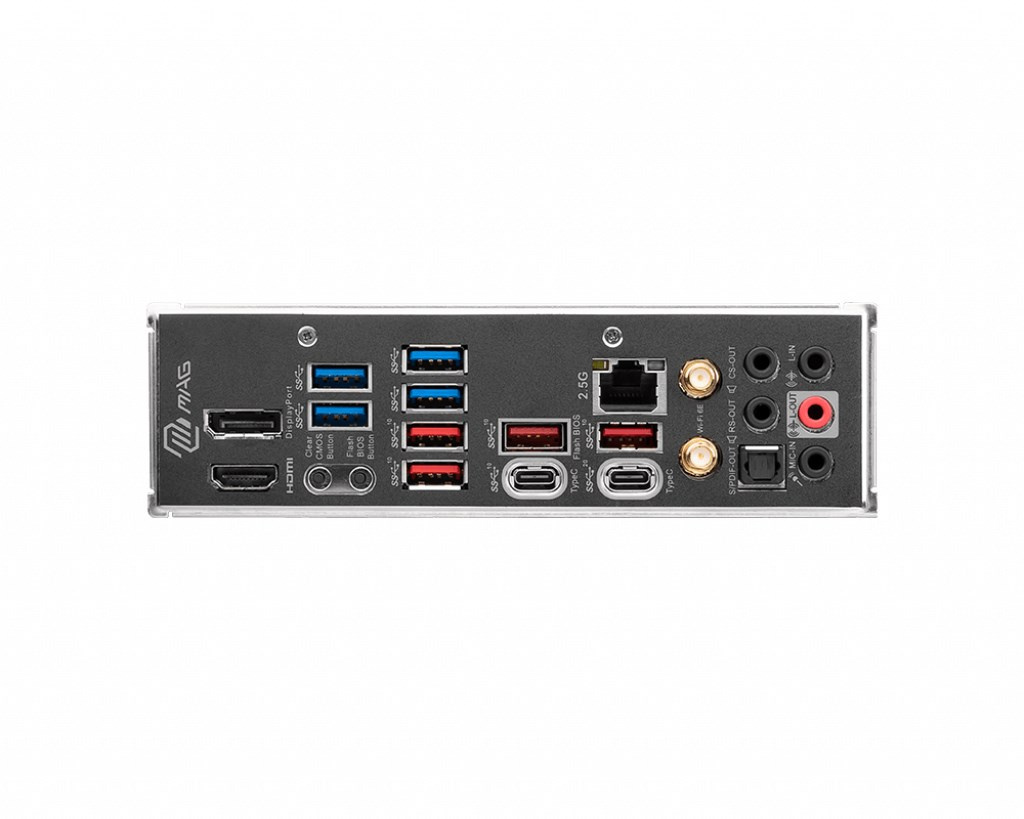

BACK PANEL PORTS
DisplayPort 1.4
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port,
HD Audio Connectors
HDMI™ 2.1 Port
Clear CMOS Button
Flash BIOS Button
USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2x2 20Gbps Type-C
Wi-Fi / Bluetooth Antenna
Optical S/PDIF OUT
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
ATX
243.84mmx304.8mm
