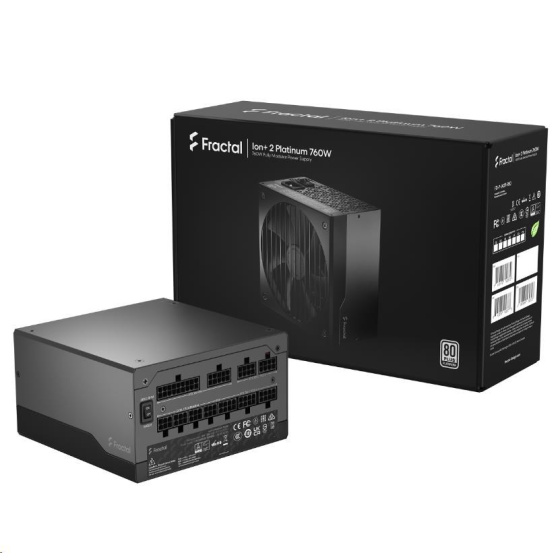

FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum

Kód: 1208165
Na dotaz
Termín a spôsob doručenia
Výkon zdroja (vo W):760; Konektory:PCIe 8-pin, SATA 15-pin; Konektory pre základnú dosku:ATX 24-pin.prečítajte si viac
Vyberte si zvýhodnené balenie
Množstevné zľavy
157.33
131.11  bez DPH
Bežná cena: 208.14  (-24%)
ks
envelope
Váš dotaz
bell
Sledovat
Parametre
Výrobca:
Kód:
1208165
Záruka:
10 Rok(ů) mesiacov
*Výkon zdroje (ve W):
760
Konektory:
SATA 15-pin, PCIe 8-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Platinum
Modulární kabeláž:
Ano
Výkon zdroje (W):
760

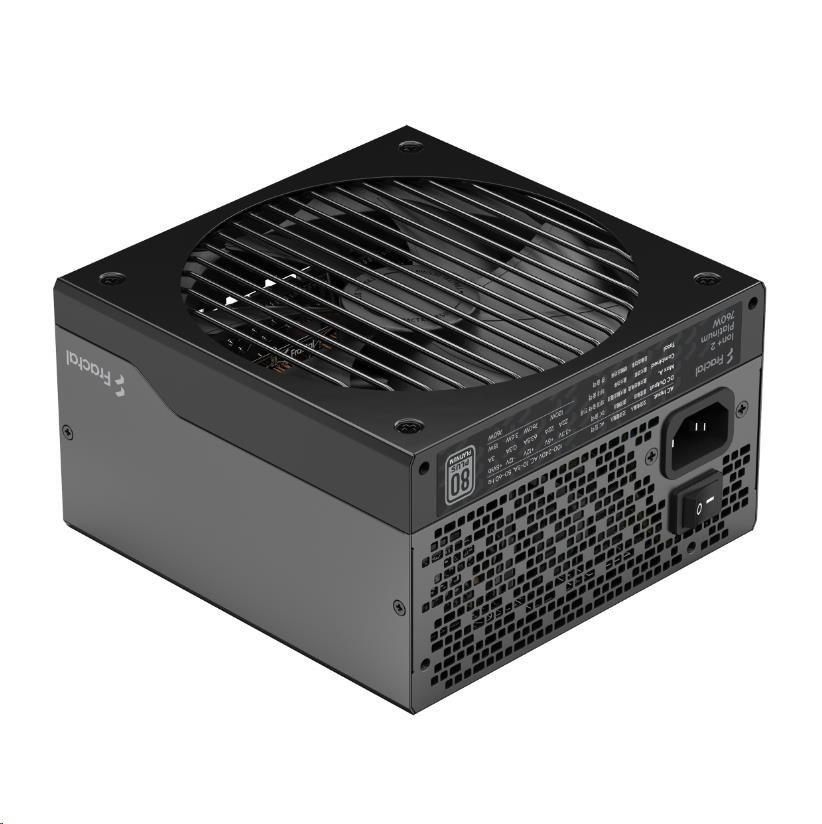

Popis FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum

Ion+ 2 Platinum 760W

The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.

  • 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
  • Great electrical output quality with tight voltage regulation and low ripple and noise

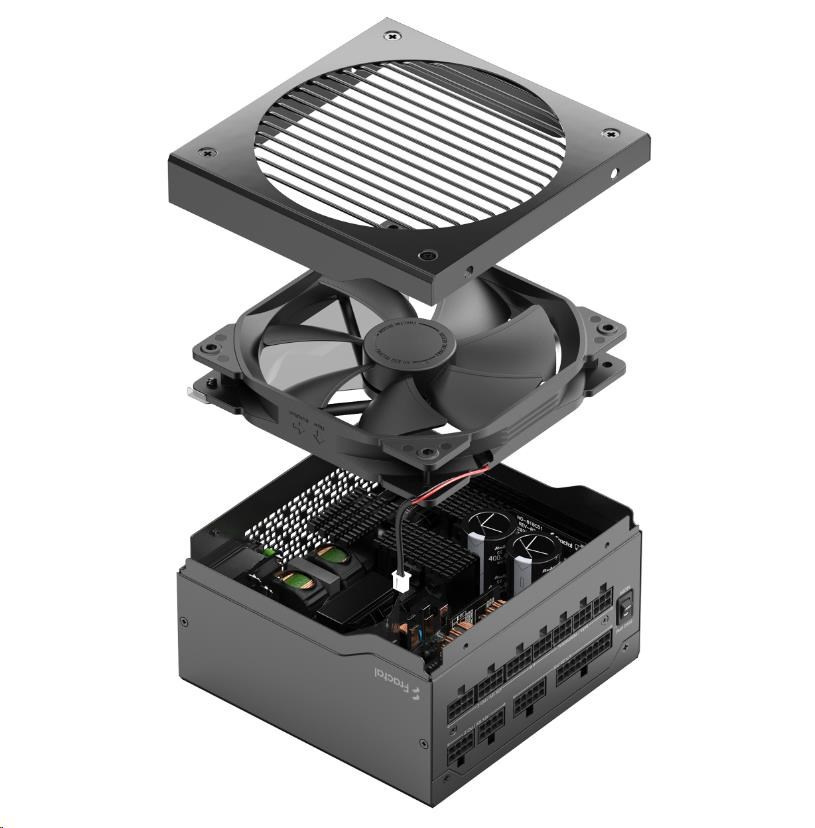

  • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management

TECHNICAL SPECIFICATIONS

80PLUS® certification Platinum
Modular cables Fully Modular

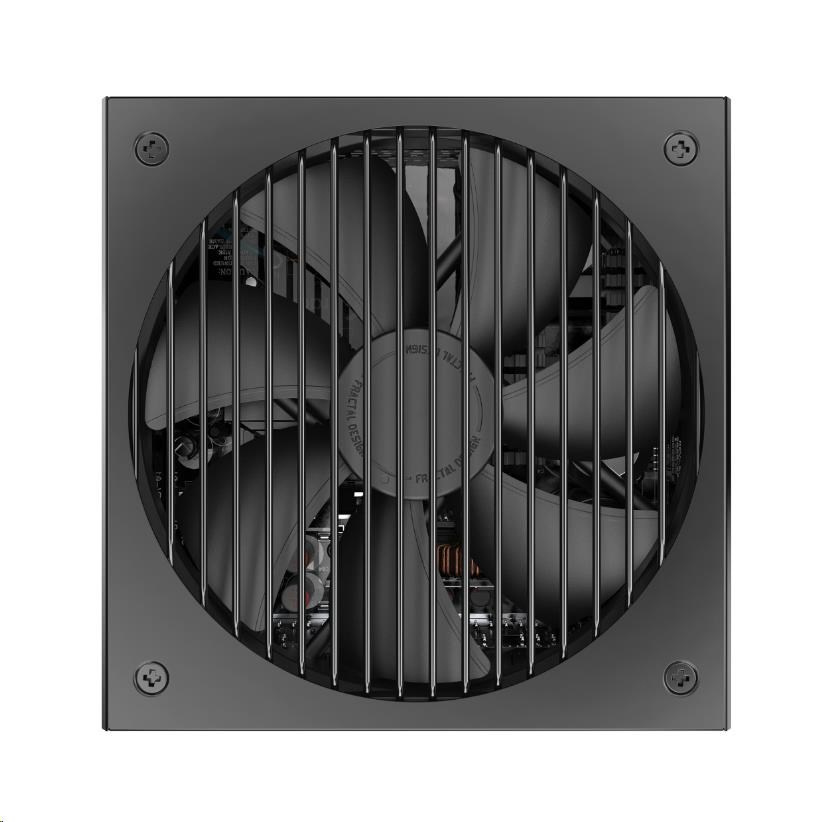

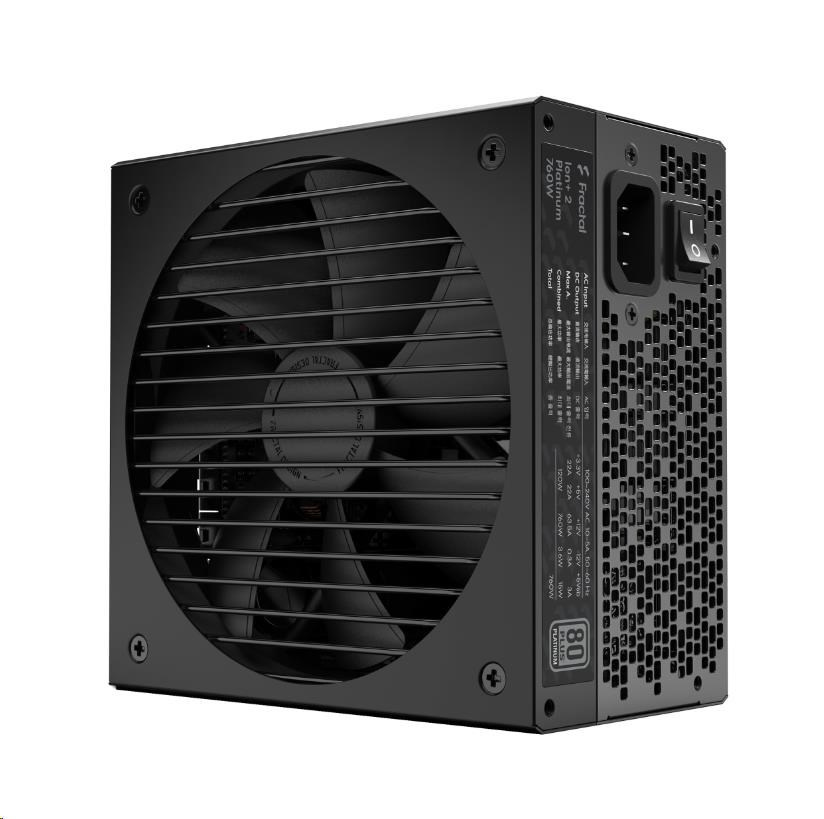

Fan type 140 mm FDB bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load) 50°C
Semi-passive operation Yes, user selectable (Zero RPM)

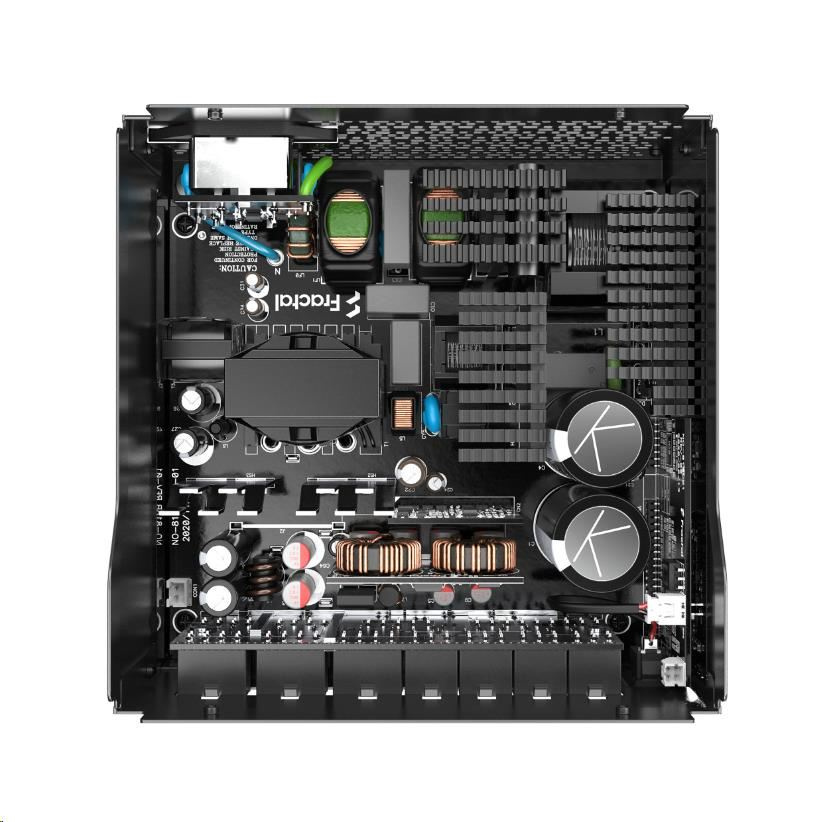

Capacitors Japanese
Life expectancy 100,000 hours
Cable type Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires
Input voltage 100-240V C
Input frequency 50-60 Hz
Input current 10A/5A
Protection features Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
PSU specification compliance ATX12V 2.52; EPS12V 2.92
Sleep state compliance C6/C7
Approvals & certifications CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Warranty 10 years

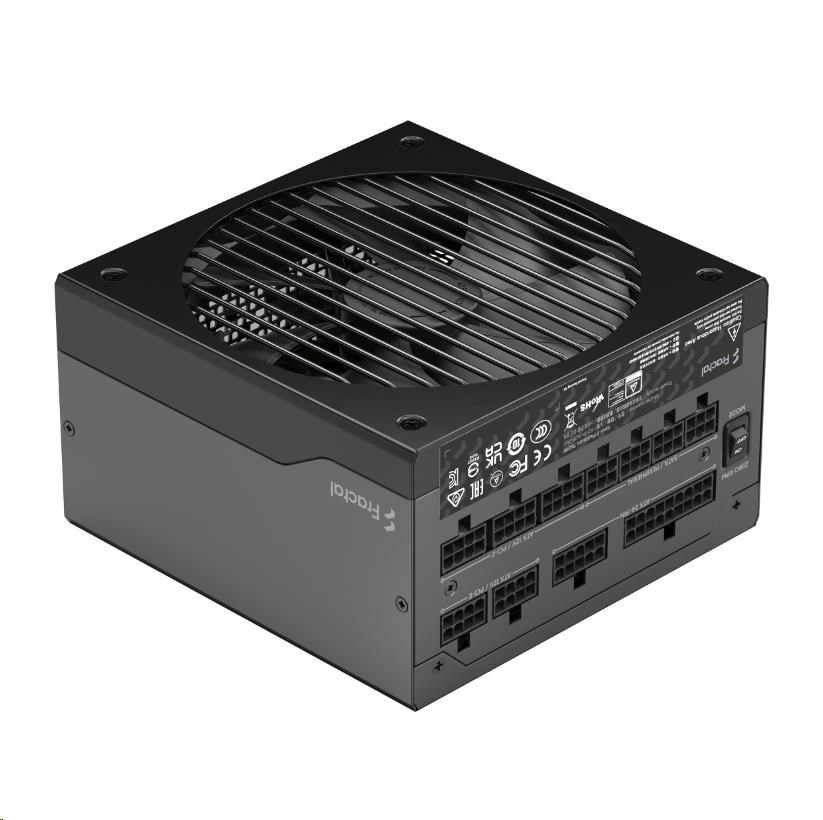

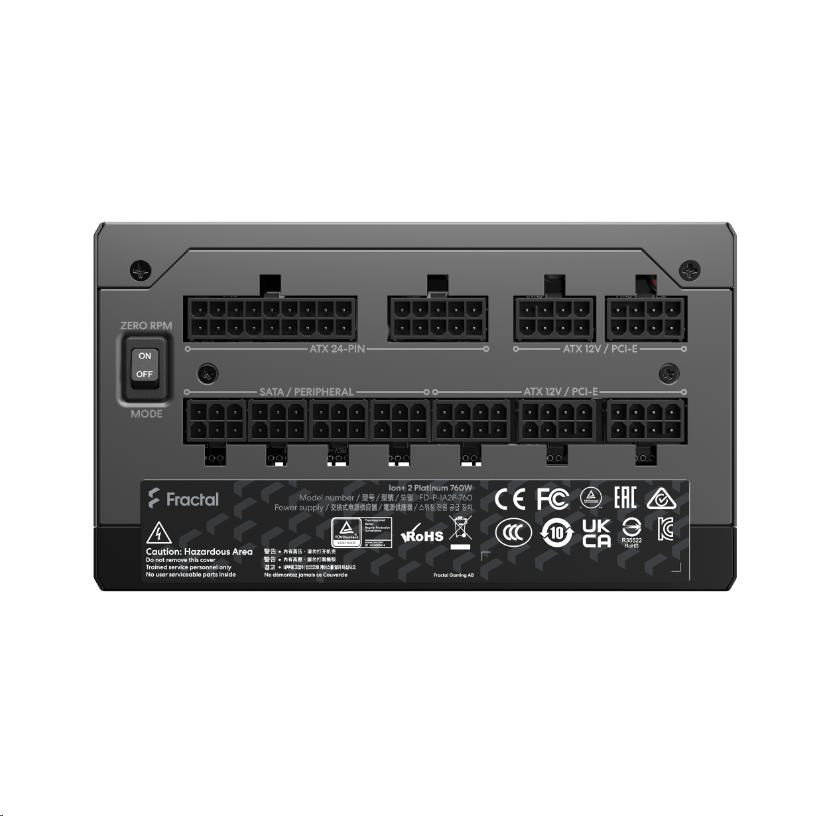

Connectors
ATX 24-pin 1
ATX12V 4+4 pin / EPS12V 8-pin 2
PCIe 6+2 pin 6
SATA 10
Peripheral 4

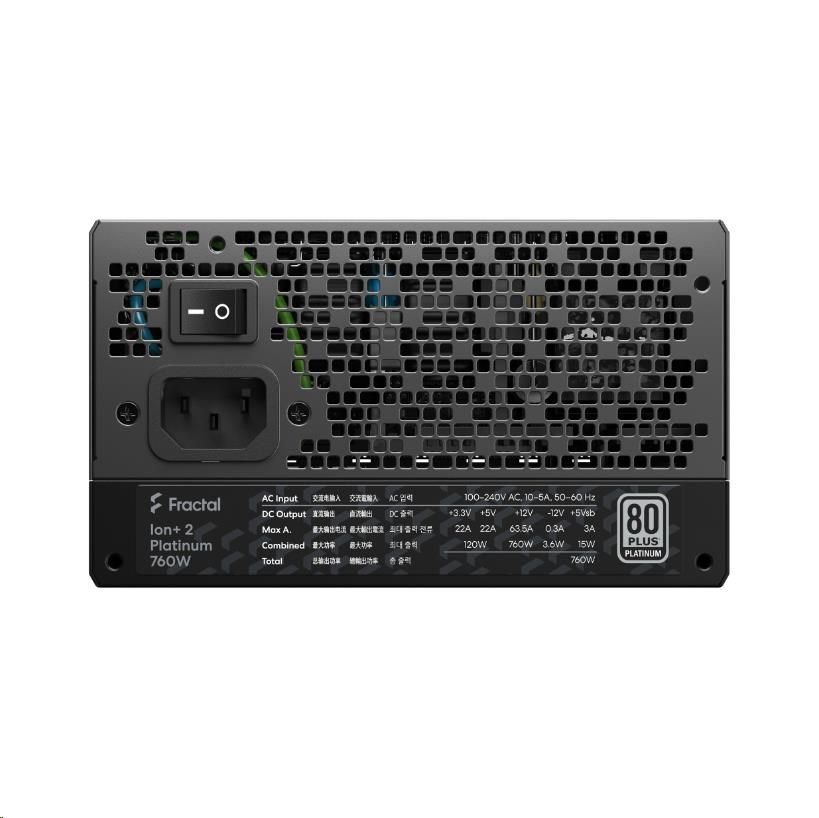

DC Output
3.3V 22A
5V 22A
3.3V and 5V combined 120W
12V 63.3A
-12V 0.3A
+5Vsb 3A
Total Power 760W

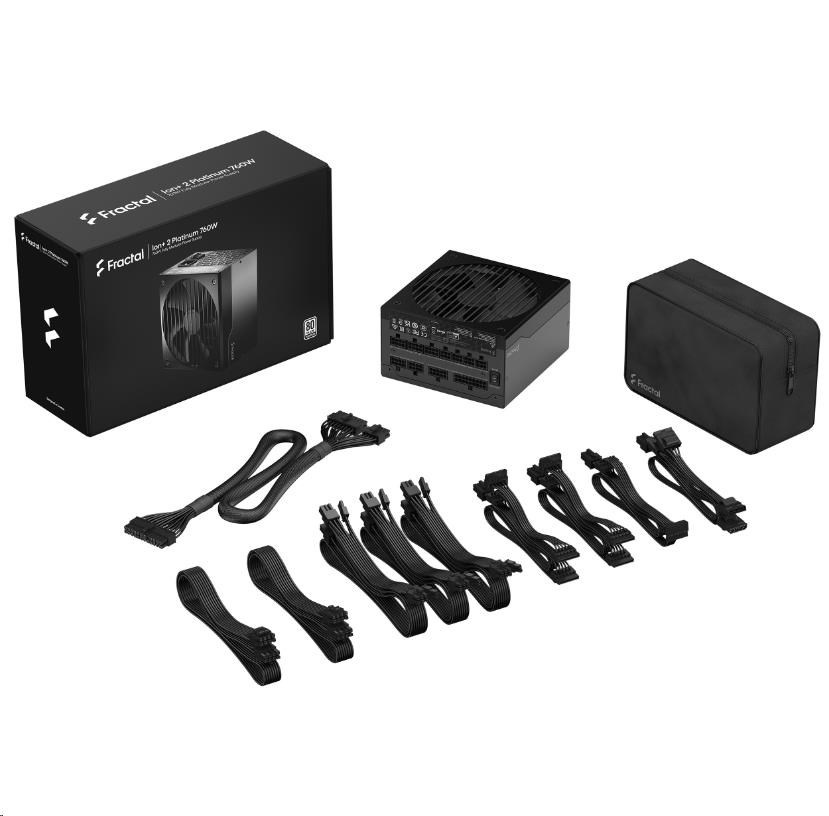

Cable Configuration (length in mm between connectors)
ATX 20+4 pin 600
ATX 12V 4+4 pin 700
EPS12V 8-pin 600
PCIe 6+2 pin 550+120
SATA 400+150+150+150 mm & 650+150mm
Peripheral 400+150+150+150 mm

.
