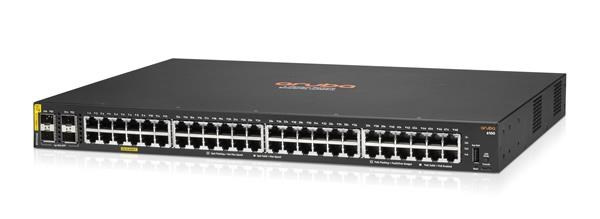

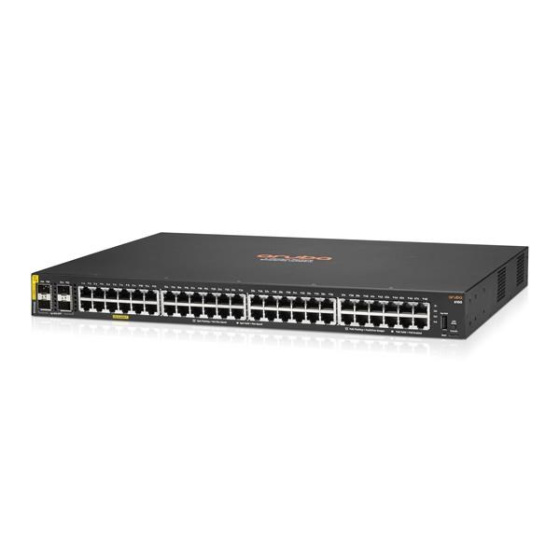

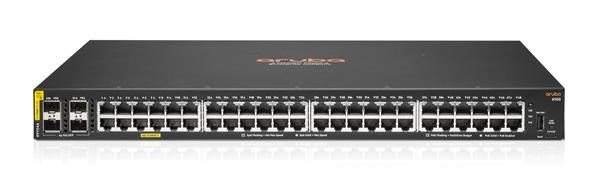

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
Kód: 726396Na dotaz
Termín a spôsob doručenia
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
726396
Záruka:
24 Doživotní
Stav:
Maximálny počet portov:
48
Technológia:
Gigabit Ethernet 1000Mbps
Management:
SNMP/RMON
Prevedenie:
Rack mounted 19"
PoE budget (W):
Přenosová rychlost LAN (Mb/s):
Funkce:
VLAN (virtual local area network), PoE (Power over ethernet), L3, QoS (Quality of service)
Počet SFP portů:
4
Podporované standardy PoE:
Žádný
Ventilátor:
Ano
Maximální počet portů:
48
Počet SFP portů:
4

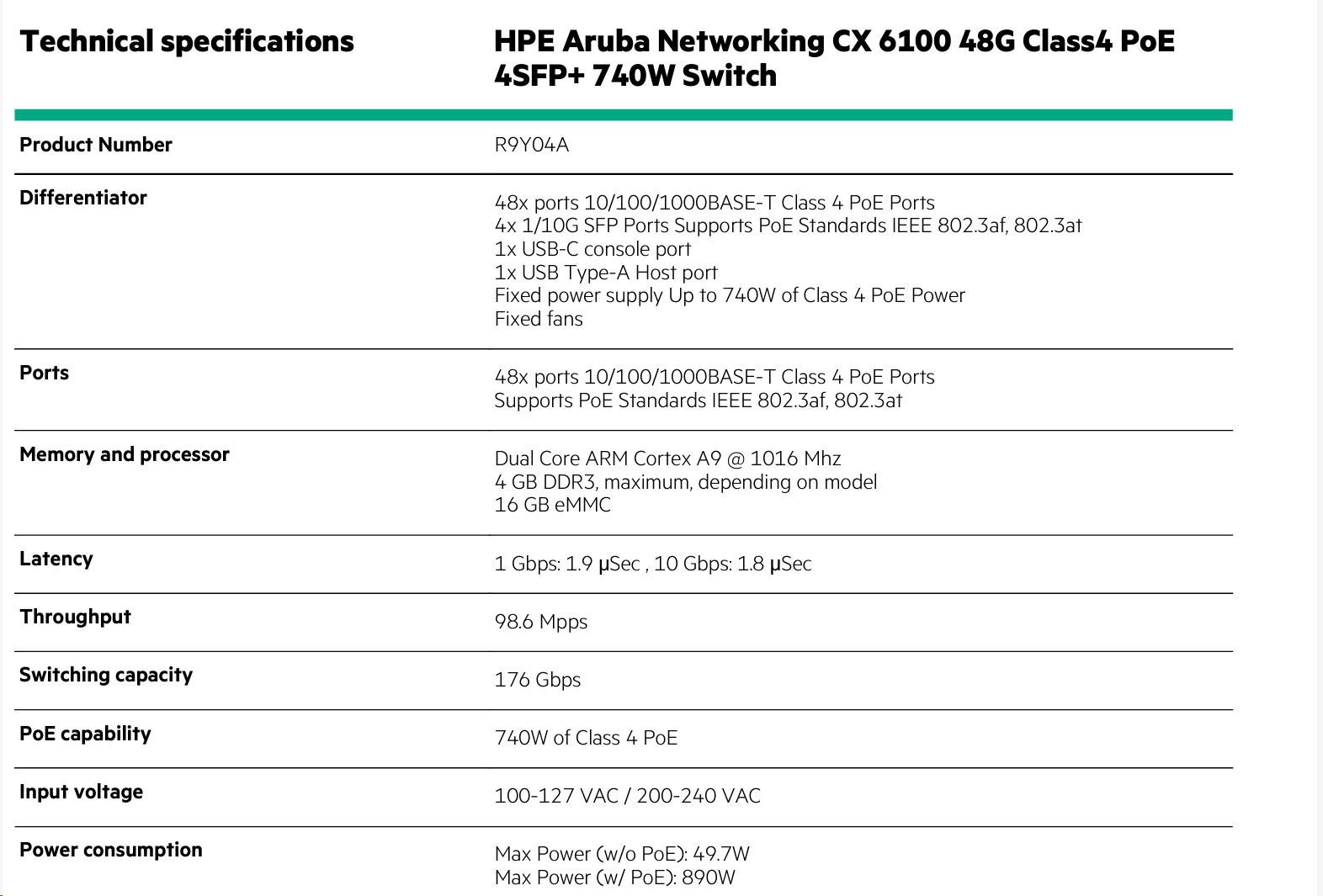

Popis HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
| Aruba 6100 48G CL4 4SFP+ 740W Sw (R9Y04A) | |
| Description | 48x ports 10/100/1000BASE-T Class 4 PoE Ports Supports PoE Standards IEEE 802.3af, 802.3at 4x 1/10G SFP Ports 1x USB-C console port 1x USB Type-A Host port |
| Power supplies | Fixed power supply (950 W) |
| Fans | Fixed fans |
| Physical characteristics | |
| Dimensions | (H) 4.39 cm x (W) 44.25 cm x (D) 32.42 cm (1.73" x 17.42" x 12.77") |
| Configuration Weight | 4.7 kg (10.36 lbs) |
| Additional Specifications | |
| CPU | Dual Core ARM CortexTM A9 @ 1016 MHz |
| Memory and Flash | 4 GB DDR3 16GB eMMC 128 MB Flash ROM |
| Packet Buffer | 12.38MB and 4.5MB Ingress/7.875MB Egress |
| Performance | |
| Model Switching Capacity | 176 Gbps |
| Model Throughput Capacity | 98.6 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1Gbps: 1.9 µs 10Gbps: 1.8 µs |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256/128/256 |
| Environment | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft derate -1°C for every 1000 ft from 5000 ft to 10000 ft |
| Operating Relative Humidity | 5% to 95% at 104°F (40°C) non-condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Non-Operating Storage Relative Humidity | 5% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 4.95 Bel Sound Pressure, LpAm (Bystander) = 35.91 dB |
| Primary Airflow | Side-to-side |
| Electrical Characteristics | |
| Frequency | 50 / 60 Hz |
| AC Voltage | 100-127 VAC / 200-240 VAC |
| Current | 9.2 A / 4.9 A |
| Power Consumption (230 VAC) | Idle: 37.5W Max Power (w/o PoE): 49.7W Max Power (w/ PoE): 890W |
| Safety | IEC / EN 62368-1: 2014 IEC / EN 62368-1: 2018 UL 62368-1: 2014, 2nd Ed., CSA C22.2 No. 62368-1:14, 2nd Ed., |
| Emissions | VCCI-CISPR 32, Class A CNS 15936, Class A FCC CFR 47 Part 15, Class A; EN 55032:2015 / A11:2020 / CISPR-32, Class A ICES-003 Issue 7: 2020, Class A AS/NZS CISPR 32: 2015, Class A |
| Lasers | IEC / EN 60825-1:2014, Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity | |
| Generic | CISPR 35: 2016 |
| EN | EN 55035:2017 / A11:2020 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | IEC / EN 61000-3-2 |
| Flicker | IEC / EN 61000-3-3 |
| Mounting and Enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
.
